5192 V-Block Cone Assembly

With the 5192 V-block cone assembly, you can construct an adjustable alignment telescope base. Both cones adjust up and down, giving you the ability to raise, lower, or shift one end of an alignment telescope to the left or right. The 5192 fits on our 5200 Series base plates. The 5192 comes complete with the following:

• Two threaded posts with square base, (which fit the 5200 Series base plates), washers, and nuts
• One instrument locator stop, adjustable in two directions, with thumbscrews
• A bracket-mounted, adjustable height leaf spring to give positive hold-down contact on your alignment telescope

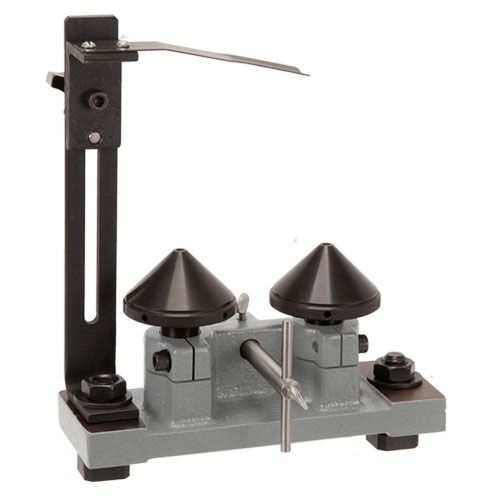

At left, two 5192 V-block cone assemblies are mounted on the 5201 base plate to provide a stable, adjustable platform for any alignment telescope.
