235-23 Surface Mount Adapter

Estimated lead time:
7 days
Ships in 2 Weeks

Put an instrument mount anywhere!

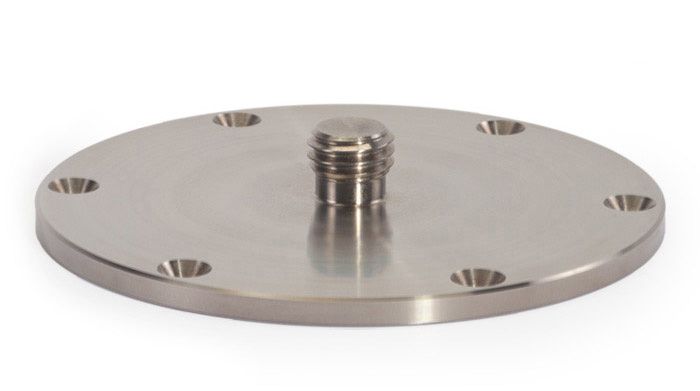

The 235-23 allows you the flexibility of having an instrument mount anywhere you want one! This adapter provides a 5/8"-11 external thread as a mount for theodolites and other instruments that require this thread configuration. The 235-23 is configured to mount on any flat surface. A plate with six countersunk bolt holes is provided for secure mounting.
Be sure to have a look at all of our instrument adapters for 3D or alignment instruments.

May Be Used With

Fits onto any customer-supplied surface with a matching bolt-hole pattern
Accepts theodolites or total stations requiring a 5/8"-­11 mount

Works perfectly with any TetraLock„¢ or fixed height M-Series stand

Bolt Hole Pattern The six thru holes, 0.169" in diameter, are countersunk for a #10 flat head screw. They are 60° apart on a 3-15/16" (100.0 mm) diameter bolt circle.
Effective Height 3/16" (4.7 mm) – this is the vertical distance between the very bottom of the unit and the top interface surface, which would coincide with the bottom of an instrument or adapter which is mounted on top of the unit
External Thread 5/8"-11
Weight, Product (Approx.) lb 0.9
Weight, Product (Approx.) kg 0.41
