235-3 Standard Adapter

Estimated lead time:
7 days
Ships in 2 Weeks

Fits a variety of instruments

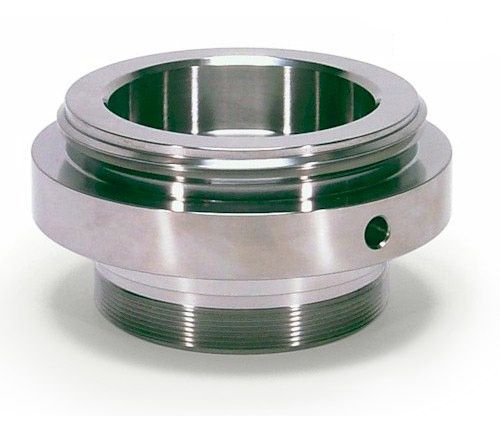

The 235-3 fits into the intermediate tube of any Brunson heavy duty stand or pedestal column stand, and provides a standard 3½"-8 instrument thread mount on top. We call it "hollow" because there is no center - you can see through it. This allows vertical sightings with any instrument capable of doing so.

Be sure to have a look at all of our instrument adapters for 3D or alignment instruments.

Effective Height 0.975" (24.8 mm) – this is the vertical distance between the lower interface surface (not the very bottom of the unit) and the bottom of an instrument which is mounted on top of the unit
Lower External Thread 2.825"-20
Material Stainless Steel
Upper External Thread 3-1/2”-8
Weight, Product (Approx.) lb 3
Weight, Product (Approx.) kg 1.36
