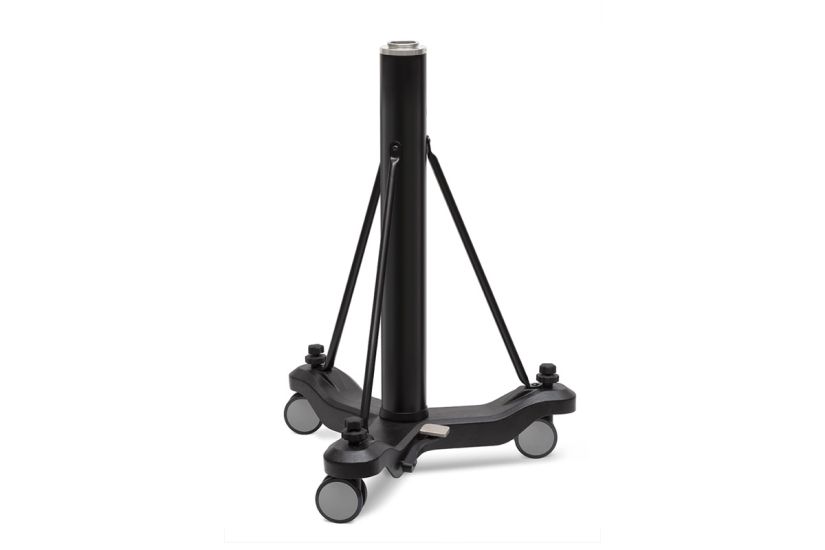

Rock Steady Fixed-Height Heavy-Duty Stands: 6", 24", 36", 48"

SKU
RS-F

In response to customer suggestions, Brunson has re-engineered the company’s heavy-duty stand line—the new Rock SteadyTM line (patent pending) of metrology stands features:

  • NEW: Large, dual wheel, 5” casters improve mobility—the Rock Steady will roll unimpeded over most thresholds, power cords, floor tracks and uneven surfaces.
  • NEW: 'hidden trivets’ are designed to nest in a recessed position between the dual-wheel casters, effectively eliminating a source of potential floor contact and damage.
  • NEW: the trivets now feature tool-less precision leveling adjusters.
  • NEW: claw-foot tribrach base.
  • Re-designed and simplified foot-pedal operation.

Specifications

Model Min./Max. Height Weight

Max. Load

RS-F-6 5.5 in. (140 mm) 96 lbs. (43.5 Kg) 150 lbs (68.2 Kg)
RS-F-24 24 in. (610 mm) 140 lbs. (63.5 Kg)
RS-F-36 36 in. (914 mm) 156 lbs. (70.8 Kg)
RS-F-48 48 in. (1219 mm) 173 lbs. (78.5 Kg)



The innovative re-design of the Rock Steady stand series required rigorous testing, ensuring the new stands support the tight-tolerance measurement requirements of the worlds’ metrologists. Dynamic product testing included:

  • Stability tests for deflection, with the Rock Steady line withstanding significant moment loads from portable CMM arms.
  • Crash-testing to ensure instrument protection and worker safety.
  • Instrument testing with a wide variety of laser trackers, measuring the stands’ ability to suppress the effects of instrument vibration upon metrology processes
  • Cycle testing to ensure durability over the long-term.

The Rock Steady line of stands has retained popular features as well:

  • Best-in-class metrology stability
  • Air-cushioned telescoping tube protects critical instruments
  • Extreme durability
  • Unmatched product quality.

Product compatibility:

  • Laser trackers
  • Portable CMM arms
  • Laser scanners
  • Laser radars
  • Theodolites
  • Optical Tooling Instruments

May Be Used With

Any instrument or adapter featuring an internal 3½”-8 thread
Any of our entire line of stand accessories and instrument adapters

Specifications
Finish Black
Min Height in 5.5
Min Height mm 140
Max Height in 48
Max Height mm 1,219
Max Load (lb) 150
Max Load (kg) 68.2
