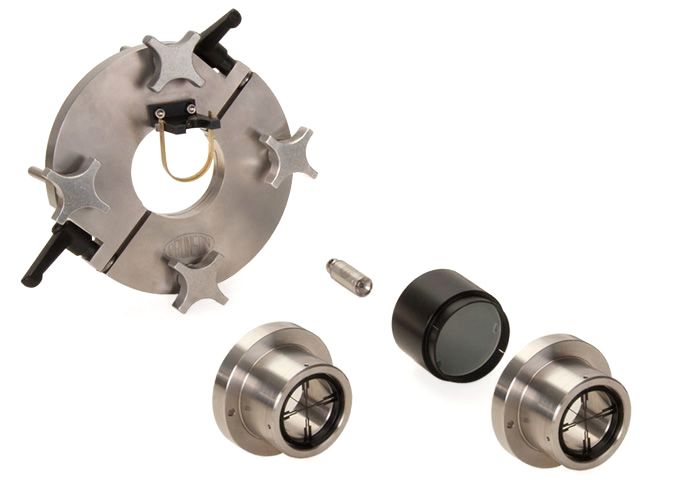

Optical Boring Bar Alignment Kit

Designed for 2.250" Spherical Bearing Assemblies in all 2.250" Climax Boring Bar field machining systems.

The Optical Boring Bar Alignment Kit is specifically designed to help you overcome common alignment challenges associated with wide-span boring applications. It is designed to work in conjunction with Climax Portable Machine Tools© field machining systems. This compact kit features lightweight portability, quick installation, easy operation, and accurate results. This system eliminates the hassle of long reference bars and the guesswork of sag calculations and allows for straighter bores in the finished product.

Portable enough to take anywhere and simple enough that a single worker can perform the alignments unassisted, you will take your on-site boring equipment to the next level with the Optical Boring Bar Alignment Kit.

The key is an optical system that replaces traditional mechanical alignment methods. Simply install a telescope in a 2.250" spherical bearing on one end of the bore, then point it toward a target mounted in a second 2.250" spherical bearing on the other end. The system works with spans up to 50' (or longer with special targeting).
