Bull's Eye targets

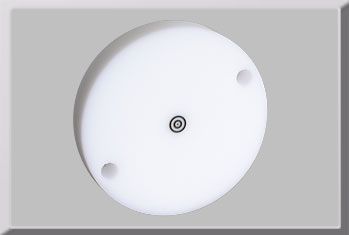

The 705 bull's eye target patterns are machine-engraved and black-filled on a circular white plexiglas or aluminum blank. The pattern has a center dot surrounded by two concentric circles. The plexiglas model may be backlit for additional visibility in low-light applications. Backlighting this target when used as the far target in a line of bore targets gives a great diffuse backlight for the other targets in the line. The 705 is 2¼" (57.2 mm) diameter and may be used in our spherical targeting systems. These targets have holes drilled through on the target's diameter for mounting and to facilitate target removal from tight spots.
The 705-1 (pictured, right) is aluminum rather than plexiglas, but is identical to the 705 in all other respects.
| Diameter in | 2.2498 – 2.2493 |
|---|---|
| Diameter mm | 57.145 – 57.132 |
| Mounting Holes | 0.1935″ (4.9 mm) drilled through on 1.880″ (47.75 mm) between centers |
| Pattern | Centered with respect to the diameter within 0.001" (0.025 mm), T.I.R. |
| Thickness | Nominally 3/8″, actual thickness may vary due to nature of material |
