Right Angle Eyepiece for Autocollimation & Reticle Projection

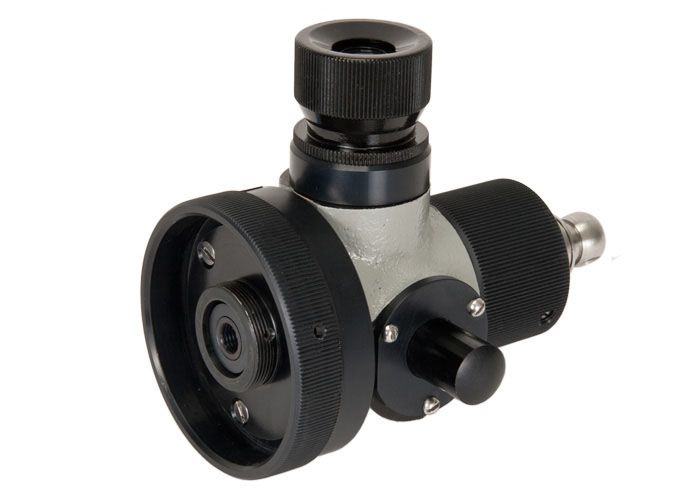

The 2240 eyepiece is used in place of the standard eyepiece on a K+E type alignment telescope. It consists of a right angle eyepiece plus an illumination unit which can be used either for autocollimation or to project an image of the reticle onto a target. The eyepiece unit may be converted in the field as required, to form a straight-through vision system or a right-angle system. Our model 509 light source is included. The 2240 is classified as National Stock Number (NSN) 6650-01-227-1632.
Note: All model 2240 eyepieces manufactured after January 2008 employ the model 509 as the light source. If you wish to upgrade an older version of the 2240 to accept the 509, you may do so by purchasing adapter number 15307. Replace the bulb housing on the older models with this adapter, and you'll be set to use the 509. Otherwise, the replacement bulb for 2240 eyepieces made before 2008 is the L3311-1 (GE157).
May Be Used With
The following alignment telescopes:
- 2022
- 2024
- C47280
- Discontinued item 2023
508 Light Source (discontinued)
5514-1, 5514-2 Lighting power supplies (discontinued)
