Length Reference Bar

SKU
1.5LRB-1050MM

Use an Invar length reference bar with your tracker

Our 1.5LRB-1050MM Length Reference Bar provides a NIST-traceable length for use during laser tracker or scanner jobs. Use it to establish system scale when using single measuring instruments or when bundling multiple instruments together. Or use it to verify system accuracy and stability during a measurement job. Many of our customers shoot a length reference bar at the beginning, middle, and end of a job to gain confidence that nothing moved or changed during the shoot.

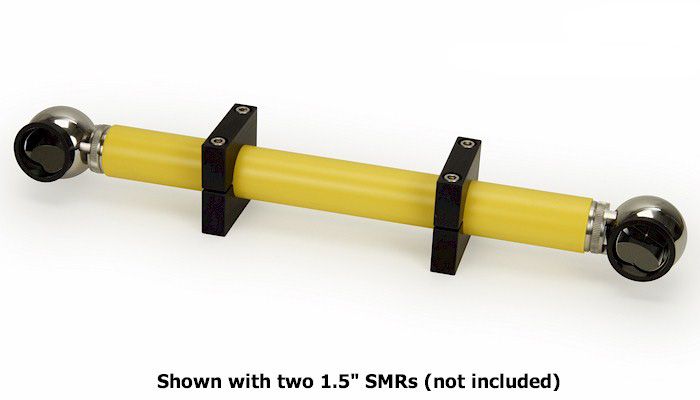

The 1.5LRB-1050MM consists of a single 1050 mm length of our Invar tubing outfitted with two permanently mounted, 1.5INV magnetic SMR nests for a 1.5" SMR. (SMRs not included) Also included are two 15199 Invar system "feet", positionable at your discretion, and a high impact plastic case.

Invar is an excellent material for this application due to its extreme stability over a wide temperature range. Take a look at the table below to see the stability of Invar reference bars compared with other materials.

Deviation in Length of 80" Reference Bar
at Various Temperatures

Temperature °F Invar
40° -0.0015"
50° -0.0010"
60° -0.0004"
68° (std) ±0.0000"
70° +0.0001"
80° +0.0007"
90° +0.0012"

Note: If you don't need NIST-traceability of a given dimension, but just require a consistent length for system checks, you may want to build your own reference bar using our Invar system and related targets.


May Be Used With

Any 1.5" SMR

Specifications
Case High impact plastic
Length Accuracy NIST-traceable certification to ±0.0001" (0.003 mm)
