SMR retainers with vertical or horizontal freedom of motion
Our 1.5THC-V (vertical) and 1.5THC-H (horizontal) SMR retainer clamps give you another way to protect those valuable SMRs from damage. Put the SMR in the target nest, and slip the retainer over the SMR. Then use the flat-tipped M3 set screws to firmly secure the retainer to the target holder. The 1.5THC-H clamps allow the SMR to rotate horizontally, with a 200° range of motion. The 1.5THC-V clamps allow the SMR to rotate vertically, with a 90° range of motion (allowing the SMR to point straight up). All 1.5THC models are designed to retain 1.5" SMRs in nests that have a 1.6" diameter.
Physical Size |
||
| Model | Diameter | Height |
| 1.5THC-V | 1.85" (47 mm) | 1.3" (33 mm) |
| 1.5THC-H | 1.85" (47 mm) | 1.75" (44.4 mm) |

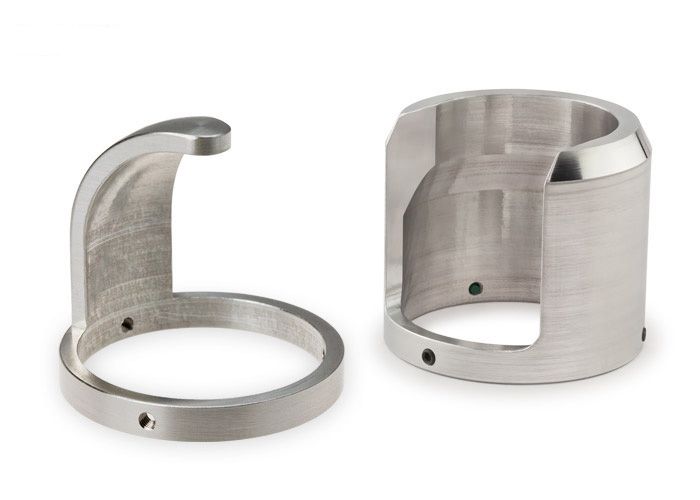

The 1.5THC-H (shown below left) captures the SMR but allows it to rotate horizontally. The 1.5THC-V (shown below right) captures the SMR but allows it to rotate vertically.
May Be Used With
Any 1.5" diameter SMR in a nest having a 1.6" diameter. This includes most of our target holders which are designed for 1.5" SMRs.
| Material | Aluminum |
|---|---|
| Range of SMR Rotation | 200° |
| Set Screws | M3 (3 each) |
