Pushing it right to the edge?

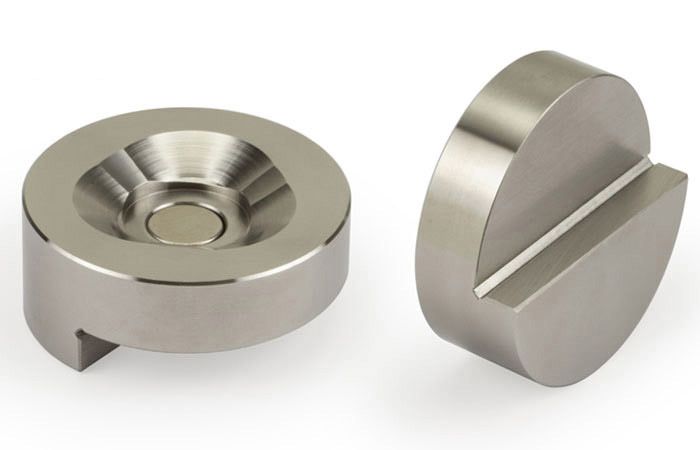

The 1.5THE magnetic adapter provides an SMR nest which locates an edge within ±0.0005". It also holds the centerpoint of a 1.5" diameter SMR precisely 1.000" or 25 mm above the surface of the part being measured. The SMR seats on a 3-point conical land.
Choose the desired model number from the table below, which shows both the English and metric versions of this adapter.
| Model | Offset "A" | Tolerance |
| 1.5THE-1 | 1.000" | ±0.0005" |
| 1.5THE-25MM | 25 mm | ±0.013 mm |
May Be Used With
Any 1.5" diameter SMR
| Diameter in | 1.600" |
|---|---|
| Diameter mm | 40.6 mm |
| Hardness | HRC 42-45 |
| Height in | 0.63 |
| Height mm | 16 |
