0.5THC SMR Retainer Clamps

SKU
0.5THC
$35.00
Overview
Ships in 1 Week

SMR retainers with vertical or horizontal freedom of motion

Our 0.5THC-V (vertical) and 0.5THC-H (horizontal) SMR retaining clamps gives you another way to protect those valuable SMRs from damage. Put the SMR in the target nest, then slip the retainer over the SMR. Then use the flat-tipped M2 set screws to secure the clamp to the target holder. The 0.5THC-H clamps allow the SMR to rotate horizontally, with a 200° range of motion. The 0.5THC-V clamps allow the SMR to rotate vertically, with a 90° range of motion (allowing the SMR to point straight up). All 0.5THC models fit 0.5" SMRs, but the diameter of the pin nest must also be considered when choosing the desired model (see table below)

Model SMR Size Target Holder Diameter
0.5THC-V-.5 0.5" 0.5"
0.5THC-H-.5 0.5" 0.5"
0.5THC-V-.75 0.5" 0.75"
0.5THC-H-.75 0.5" 0.75"

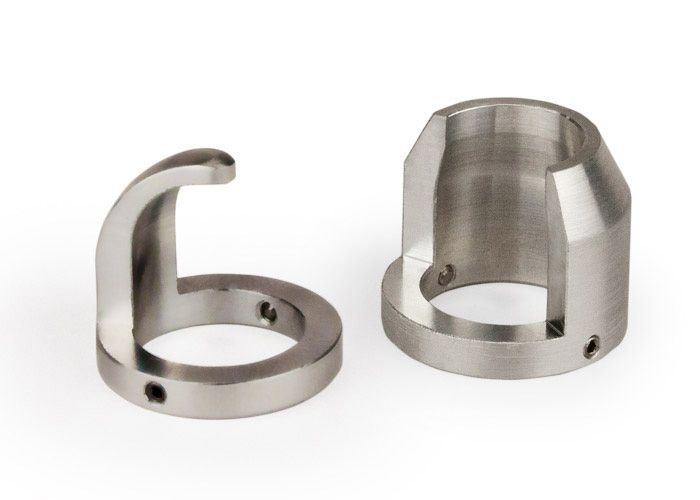

The 0.5THC-H (shown below, left) captures the SMR but allows it to rotate horizontally. The 0.5THC-V (shown below, right) captures the SMR but allows it to rotate vertically.

0.5THC-H and 0.5THC-V

Physical Size
Model Diameter Height
0.5THC-V-.5 0.75" (19 mm) 0.5" (12.7 mm)
0.5THC-H-.5 0.75" (19 mm) 0.69" (17.5 mm)
0.5THC-V-.75 1" (25.4 mm) 0.5" (12.7 mm)
0.5THC-H-.75 1" (25.4 mm) 0.69" (17.5 mm)

May Be Used With

0.5THC-.5 models retain a 0.5" diameter SMR mounted in a nest having a 0.5" diameter
0.5THC-.75 models retain a 0.5" diameter SMR mounted in a nest having a 0.75" diameter

Specifications
Material Aluminum
Range of SMR Rotation 200° for horizontal ("-H") models; 90° for vertical ("-V") models
Set Screws M2 (3 each)
