0.5THCP Series Center Punch Adapters

0.5THCP Series Center Punch Adapters
Ships in 1 Week

Put a punch mark directly below your SMR location

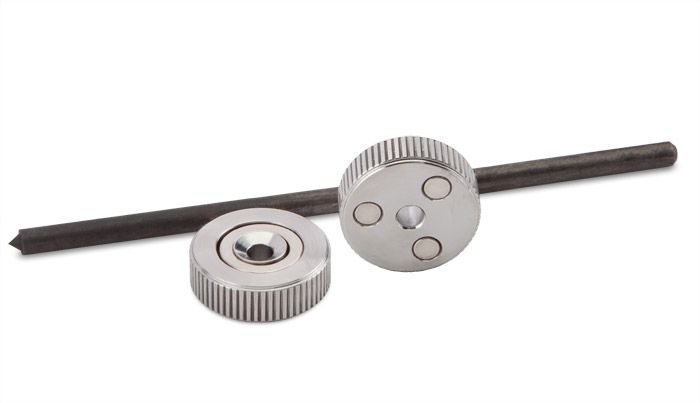

The 0.5THCP magnetic adapter is an SMR nest which doubles as a transfer punch locator, allowing you to mark a point directly under the SMR. The magnet in the 0.5THCP is positioned to create a somewhat stronger bond on the bottom than on the top. This offset-magnet approach helps to hold the adapter in place while the SMR is removed and the transfer punch is inserted through the precision center hole. The center hole is true to the center of the SMR within ±0.001" (±0.026mm). Outside diameter is knurled to provide a better grip. The transfer punch is included.
Laser tracker target holder, Brunson 0.5THCP
Offset "A"
0.5" ±0.001" 0.5THCP-12MM 12mm ±0.026mm

May Be Used With

Any 0.5" diameter SMR
Transfer Punch 15344 (included)



Adapter size: .990" (25.146mm) diameter
Offset tolerance: ±0.0015" (±0.026mm)

Target centering tolerance: ±0.001"(±0.026mm)

Material: Stainless steel, machine finish

Hardness: HRC 42-45


PDF Download Drawing

Brunson 0.5THCP Drift Nest drawing
